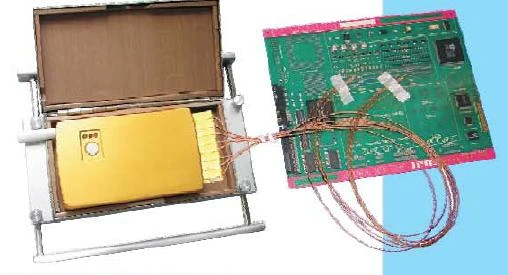

BWT藍牙無線測溫儀

BWT藍牙無線測溫儀



• 保護外殼樣式: 採用鋁合金外殼具備快速散熱效果
• 傳輸方式: 遠距離藍牙溝通Class#1級
• 隔熱性能: 採用三明治優良隔熱係數
• 供應電源: 高效防爆等級鋰電池
• 記憶方式: 資料可儲存於快閃記憶體或使用USB方式讀取資料


操作介面:



• 溫度曲線表現:具備兩組溫度曲線同時表現於圖控
• 相對性比較表現:可相容最高溫度及任意時刻點溫度比較
• X-Y 軸:X-軸: 溫度Y-軸: 時間
• 劃面:劃面縮小及放大機能
• 印表機能: 可選擇內容列印專案
• 記錄機能:具備Execel表資料記錄



Model		BWT-08
Application		wave soldering/Reflow recorded temperature
Case(LxWxH) mm		142(L)x84(W)x21(H) mm(exclude:Anntenna module)
PC software		Simplified chinese/Traditional Chinese/English
Thermal Type		8-channel thermal checker
Temp. Range		0~500℃
Tehermocouple Type		K-type
Accurancy		1℃
Detect Frequency		Setup(0.0625~15.9375 sec)
Insight Case Temperature		Auto-protection:<75℃ Max.Temp:<100℃
Communication		Buletooth/Immediately monitor
Bluetooth model	Communication Speeds	115200 bps
	Operating Frequency	2.4GHz
	Sensiitivity	-90dBm
	Distance	100M(Opening environment)
	Output Impedance	50Ω
	Distance
Record Point		Points:135000
Power Supply		Expplosion-proof Lithium Battery 3.2V 800mAH
