| 產品型號： | TY04-08 |
| 產品名稱：TY04-TY08R | 多點溫度控制系統 |

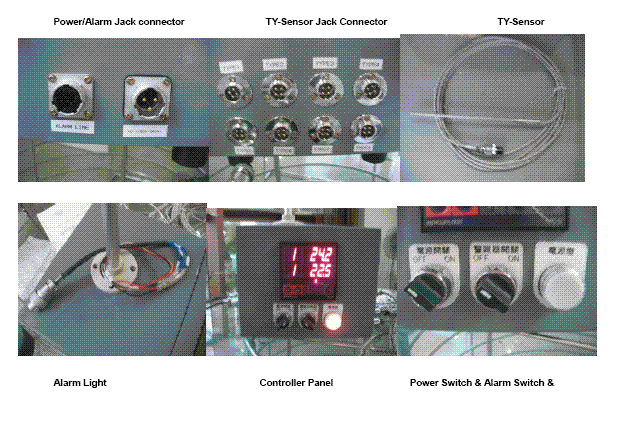

| 特性 • 支援多種複合式溫度控制監視機能. • 攜帶型移動方便:採用快速接頭(具備防呆設計)操作簡易 • 一次性全部感測點設定機能. • 警報器可由盤面強制關閉,並具備警視人員確認設定.消除機能 • 共用電壓設計:AC90~240V • 支援RS485/RS422機能. Specifications • Support a variety of composite temperature Control & Monitoring function.. • Portable and easy to move: The quick connector (with foolproof design) easy to operate. • All sensor nodes set up a one-time function.. • Alarms can be forcibly closed panel disk, and with police as officers confirm the setting. Eliminate function/ • Wide Range share voltage design:AC90~240V • Supports RS485/RS422 function. |
|
|
Model |
TY04 |
TY04R |
TY08 |
TY08R |
|
Namber of channel |
4 |
4 |
8 |
8 |
|
Input Type |
TC,RTD,DCV(Refer to Input type & Range Code) |
|||
|
Standard contact |
±0.1 % ℃(0~50 ℃) |
|||
|
InputRange |
Refer to Inoput Type * Range code |
|||
|
Memory Backup |
Memory Backyup By EEPROM,Life span of EEPROM:100,000 writing possible,Save Data for Over 10 years |
|||
|
Control Type |
On/Off,P,PI,PD,PID control |
|||
|
Contact input |
Direct,Reverse On:less than 2KΩ,Off:over 15KΩ |
|||
|
Operation environment |
Ambient Temp.:0~50 ℃ |
|||
|
Ambient Humi.:20~85 % RH |
||||
|
Communication |
No |
RS485/422+Contact |
No |
RS485/422+Contact |
|
Power Voltage |
AC 100~240 V,50/60 Hz |
|||
| 型號 | TY04 | TY04R | TY08 | TY08R |
| 感測點數 | 4 | 4 |
